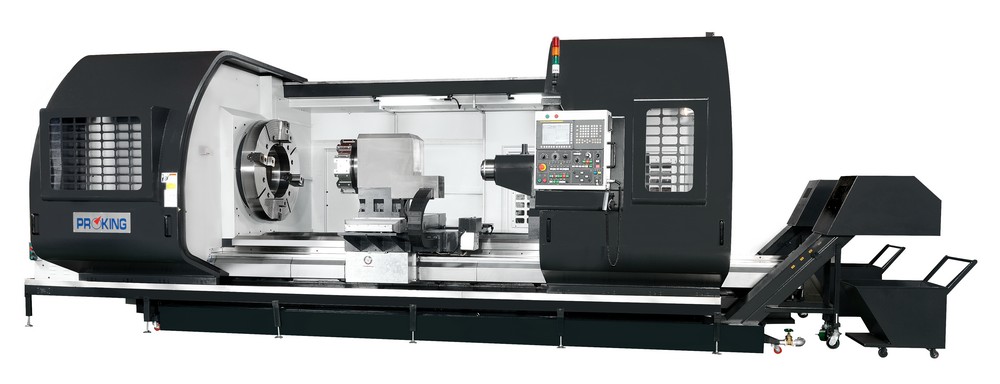

* One piece bed, floor type casting.
* Alloy steel spindle with opposed taper roller bearings.
* All gears in the headstock are hardened and precisely ground.
* Automatic ranges of spindle speed through pneumatic gear shift.
* Spindle speed ranges are automatically changed by M code.
* Infinitely variable speed are commanded by S code.
* Tool change are commanded by T code.
* Auto lubrication system is equipped for headstock, carriage, and cross-slide.
* Precision tapered roller bearings are equipped on the spindle and the quill.
* The quill is heat treated and precisely ground.
* Internal taper of quill to suit MT#6 dead center or live centre.
* Turcite B anti friction material is applied on cross slide and carriage for reduce friction.
* X and Z axis ballscrews are protected by covers to prevent ingress of swarf / chips and coolant.

* Hydraulic H4 turret.
* Rotating tailstock quill with 235mm diameter.
* Motorized tailstock body and quill movement.
* FANUC 0i-TF series complete with manual guide and thread repair.
* Front and rear chip conveyor.

ITEM	UNIT	BNC-60	BNC-70	BNC-80
CAPACITY
Centre height	mm (in.)	805 (31.69)	930 (36.61)	1055 (41.53)
Swing over bed	mm (in.)	1,550mm	1,800mm	2,050mm
Swing over cross slide	mm (in.)	1,070mm	1,320mm	1,570mm
Distance between centres	mm (in.)	1500 (59.05), 2000 (78.74), 3000 (118.11), 4000 (157.48), 5000 (196.85), 6000 (236.22), 7000 (275.59), 8000 (314.96), 9000 (354.33), 10000 (393.70), 11000 (433.07), 12000 (472.44)
BED
Width	mm (in.)	920 (36.22)
CARRIAGE
Width of cross slide	mm (in.)	500 (19.68)
TURRET
Standard tool post		Auto 4-way / Polygon Disc / VDI disc
No. of tool stations		H4;H6 / V12 / V8;V12
Turning Tool Size	mm (in.)	32 x 32 (1.25)
Boring Tool Size(max.)	mm (in.)	63 (2.5)
TRAVEL
Cross slide(X axis) travel	mm (in.)	950 (37.4)
Longitudinal(Z axis) travel	mm (in.)	1500 (59.05), 2000 (78.74), 3000 (118.11), 4000 (157.48), 5000 (196.85), 6000 (236.22), 7000 (275.59), 8000 (314.96), 9000 (354.33), 10000 (393.70), 11000 (433.07), 12000 (472.44)
Cutting feed rate	mm(in.)/rev	X axis : 0.001~250(0.00004~9.84) ; Z axis : 0.001~400(0.00004~15.75)
Rapid travel	M.(Ft.)/min	X axis : 6(19.68) ; Z axis : 6(19.68)
Ballscrew diameter	mm (in.)	X axis : 50(1.96) ; Z axis : 80(3.14)
TAILSTOCK
Quill type		Built-in type, Rotating tailstock quill
Quill diameter	mm (in.)	235(9.25)
Quill travel	mm (in.)	200(7.87)
Internal taper of quill		MT#6
MOTOR
Headstock oil refrigerator		18,000BTU(4,500Kcal)
Main spindle	KW(HP)	30/37(40/50)-STD. ; 37.5/45(50/60)-OPT.
Axis servo	KW(HP)	X axis : 7(9.387) ; Z axis : 7(9.387)
Hydraulic tank	KW(HP)	3.7(5)
Coolant pump	KW(HP)	1.05(1.4)
Controller		FANUC 0i-TF series-STD ; FANUC 31i-B series / Other required-OPT.

Note :
(1) X and Z axes actual cutting diameter will change when equipped with different turrets.
(2) Specifications are subject to change without notice for improvement
