*Incremental in-feed of wheel head.
*Ball screws to Carriage Long Travel & infeed cross-travel.
*Digital AC motors & drives.
*Coolant equipment.
*Tailstock mounted dresser facility.

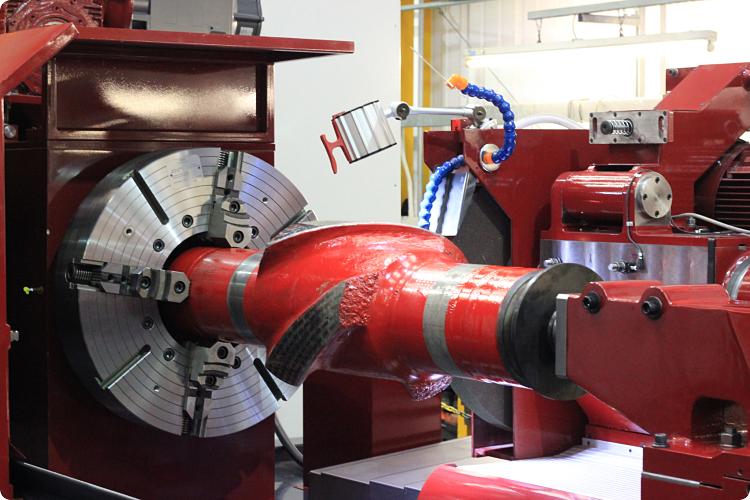

*Work holding 4 jaw chuck to front of spindle & adjustable clamping
ring to rear of spindle.
*1 off wheel hub.
*1 off 3 point steady.
*1 off tailstock.
*Guarding.
*Machine operating manual complete with electrical drawings and
foundation layout and standard mechanical parts catalogue.
*Certificate of conformity.
Capacity |
Dimensions |
Swing over slides |
42.5” (1080 mm) |
Distance between centres |
120” (3048mm) - 400" (10000mm) |
Face width ground (max) |
120” (3048mm) |
Wheel Size |
30” x 12” bore x 3” wide |
Work head speeds |
10 to 100 rpm variable |
Work head bore |
12.5” (318 mm) |
Maximum work piece weight |
5,000Kgs |
Main Motor, spindle |
18.5 Kw |
Floor area (approx.) |
5700mm x 2300mm |
Weight of machine (approx.) |
14,500 Kgs |
