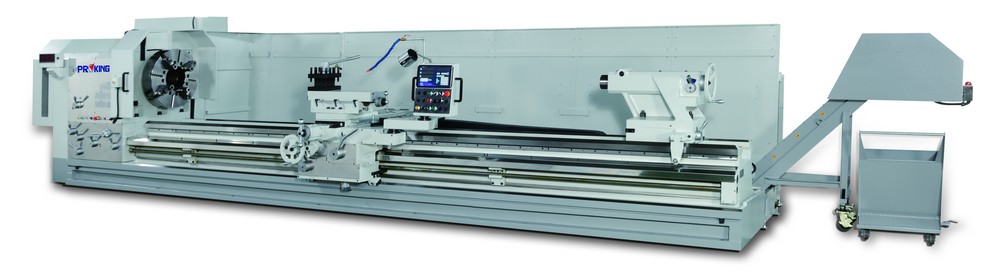

* One piece bed, floor type casting.
* 2 shear bed way with extra way supporting the apron.
* All ways are hardened and ground.
* Alloy steel spindle with opposed taper roller bearings.
* Hardened and ground gears, shafts.
* Electromagnetic spindle brake.
* 18-speed geared headstock.
* 6-way rapid traverse and power feed to top slide.
* Totally enclosed universal inch / metric gear box.
* Carriage position device.
* Dual voltage spindle motor, 20 to 50 HP.
* Pressurized one shot lube system for cross slide and carriage.
* 1 dead centre, MT #6.
* 2-speed tailstock quill (manual).
* One piece stainless steel leadscrew cover.
* Coolant pump.
* Follow type splash guard.
* Rear side chip and water collect plate.
* Thread chasing dial.
* Water and oil collect plate under apron.
* Work lamp.
| ITEM |
UNIT |
PA-35 |
PA-40 |
PA-45 |
PA-50 |
| CAPACITY |
| Centre height |
mm (in.) |
445 (17.51) |
510 (20.07) |
575 (22.63) |
645 (25.39) |
| Swing over bed |
mm (in.) |
880 (34.64) |
1010 (39.76) |
1135 (44.68) |
1275 (50.19) |
| Swing over cross slide |
mm (in.) |
615 (24.21) |
745 (29.33) |
875 (34.44) |
1015 (39.96) |
| Swing over gap |
mm (in.) |
1340 (52.75) |
1470 (57.87) |
1600 (62.99) |
1740 (68.50) |
| Gap width from headstock(opt.) |
mm (in.) |
600
(23.62) |
| Distance between centres |
mm (in.) |
1500
(59.05), 2000 (78.74), 3000 (118.11),
4000 (157.48), 5000 (196.85), 6000 (236.22),
7000 (275.59), 8000 (314.96), 9000 (354.33),
10000 (393.70), 11000 (433.07), 12000 (472.44) |
| BED |
| Width (W/O auxiliary guide) |
mm (in.) |
560
(22.04) |
| Width (W auxiliary guide) |
mm (in.) |
660
(25.98) |
| CARRIAGE |
| Cross slide travel |
mm (in.) |
670
(26.37) |
| Compound tool post travel |
mm (in.) |
450
(17.71) |
| 4-way tool post width |
mm (in.) |
205
(8.07) |
| THREAD FEED RANGE |
| Longitudinal feed |
mm/rev (in.rev) |
0.045~2.55
(0.0018~0.1) |
| Cross feed |
mm/rev (in.rev) |
0.023~1.28
(0.0009~0.05) |
| Longitudinal rapid feed |
mm/rev (in.rev) |
2000
(78.74) |
| Cross rapid feed |
mm/min (in/min) |
1270
(50.00) |
| Metric thread |
mm (kinds) |
1~56
(60) |
| Inch thread |
TPI (kinds) |
1/2~28
(60) |
| Module thread |
MOD (kinds) |
0.25~14
(60) |
| Diamteral pitch thread |
DP (kinds) |
2~112
(60) |
| Pitch of leadscrew |
mm (TPI) |
12 (2) |
| TAILSTOCK |
| Quill diameter |
mm (in.) |
115
(4.52) |
| Quill travel |
mm (in.) |
200
(7.87) |
| Inner taper
of quill |
MT#6 |
| Bearing surface on the bed ways |
mm (in.) |
500
(19.68) |
| MOTOR |
| Main spindle motor |
KW (HP) |
14(20)-STD.
18(25) / 22(30) / 29(40) / 37(50)-OPT |
| Coolant pump motor |
KW (HP) |
0.1
(0.125) |
Note :
(1) X and Z axes actual cutting diameter will change when equipped with
different turrets.
(2) Specifications are subject to change without notice for improvement
