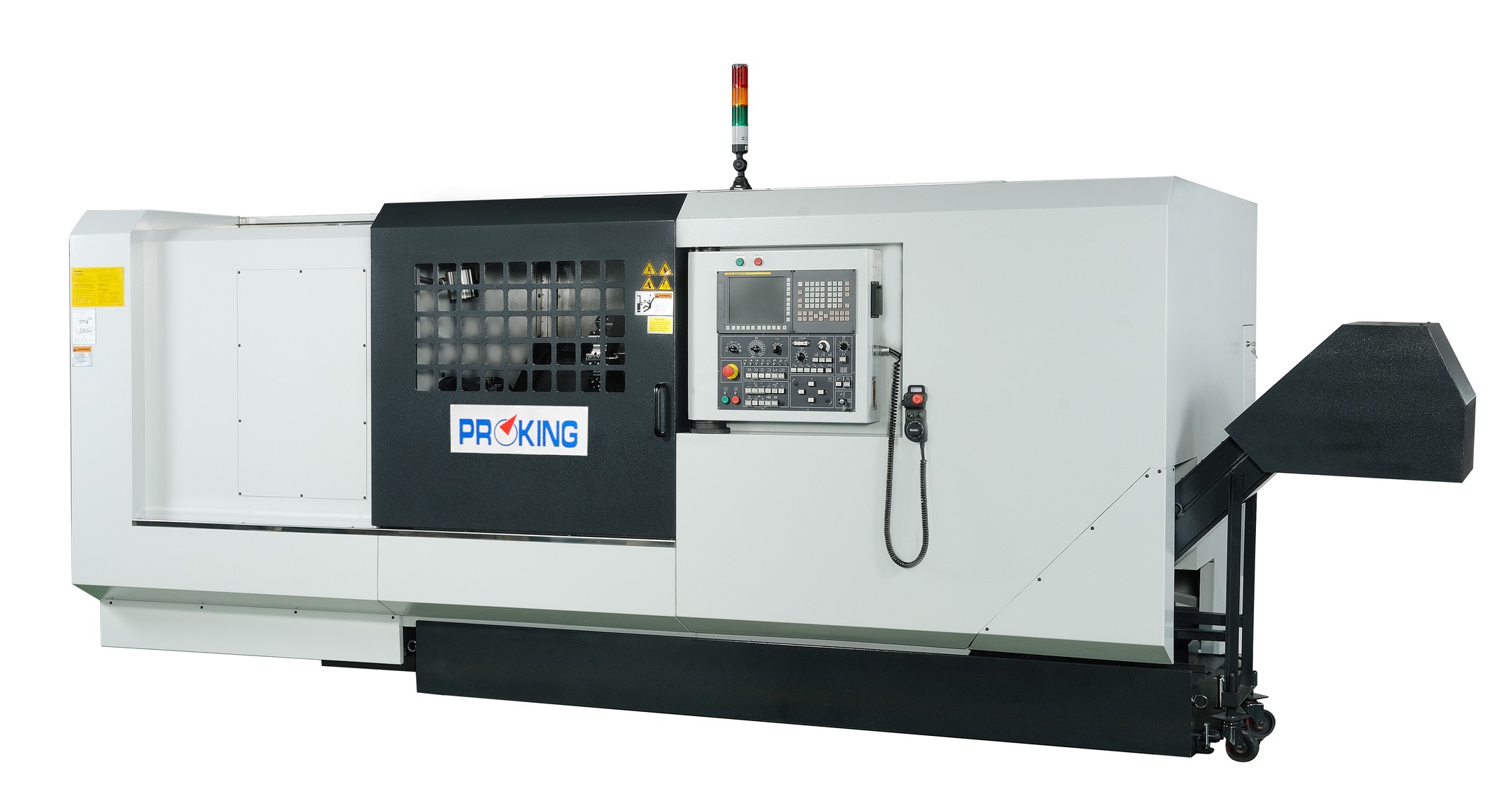

* One piece bed, 45° slant bed
construction ensures maximum stability and convenient chip disposal.
* Alloy steel spindle with opposed taper roller bearings.
* All gears in the headstock are hardened and precisely ground.
* Infinitely variable speed are commanded by S code.
* Tool change are commanded by T code.
* Auto lubrication system is equipped for headstock, carriage, and
cross-slide.
* Precision tapered roller bearings are equipped on the spindle and the
quill.
* The quill is heat treated and precisely ground.
* Internal taper of quill to suit MT#6 dead center or live centre.
* Turcite B anti friction material is applied on cross slide and
carriage for reduce friction.
* X and Z axis ballscrews are protected by covers to prevent ingress of
swarf / chips and coolant.
* V12 turret.
* Rotating tailstock quill with 115mm diameter.
* Motorized tailstock body and quill movement.
* FANUC 0i-TF series complete with manual guide and thread repair.
* Front chip conveyor.
| ITEM |
UNIT |
SS-27(TS) |
SS-27(TC) |
SS-27(TY) |
| CAPACITY |
| Centre height |
mm (in.) |
505
(19.88) |
| Swing over bed |
mm (in.) |
700
(27.55) |
| Swing over cross slide |
mm (in.) |
570(22.44) |
| Max. Turning Diameter |
mm (in.) |
680(26.77) |
570(22.44) |
| Distance between centres |
mm (in.) |
700(27.55) / 1200(47.24) / 1700(66.92) / 2200(86.61) /
2700(106.29) / 3200(125.98) |
| BED |
| Width / Slant angle |
mm (in.) / deg |
1270(50)
/ 45° |
| CARRIAGE |
| Width of cross slide |
mm (in.) |
400(15.74) |
| SPINDLE |
| Spindle Nose |
ASA |
A2-11 |
| Chuck Size |
inch |
15"
(V-215) STD /15"(N-215) OPT / 18"(V218) OPT / 18"(N-218) OPT |
| Spindle Bore |
mm (in.) |
Ø130mm
(5.19) |
| Spindle speed |
/min |
1800 |
| Bar Material Thruogh-hole Diameter |
mm (in.) |
Ø117(4.6) |
| TURRET |
| Standard
turret |
Polygon
Disc / VDI disc / BMT65 disc |
| No. of
tool stations |
V12 |
| Turning Tool Size |
mm (in.) |
25 x
25 (0.98) |
| Boring Tool Size(max.) |
mm (in.) |
40
(1.57) |
| Indexing
Type |
Servo |
Servo |
Servo |
| Tool
Driver system |
STATIC |
BMT65 |
BMT65 |
| Tool
Holder Type |
STATIC |
DAEWOO |
DAEWOO |
| Tool
Holder Type |
SAUTER 0.5.440.220 |
DUPLOMATIC DM-TR20 |
DUPLOMATIC DM-TR20 |
| Turret Servo Motor |
KW |
N/A |
5.5KW
(α30/4000is) |
| Tool To Tool Change Time
(Neighboring Tools) |
sec. |
0.3 |
0.3 |
0.3 |
| Tool To Tool Change Time (Opposite
Change Tools) |
sec. |
0.9 |
0.9 |
0.9 |
| TRAVEL |
| X axis travel |
mm (in.) |
330(12.99) |
290(11.41) |
280(11.02) |
| Z axis travel |
mm (in.) |
700(27.55) / 1200(47.24) / 1700(66.92) / 2200(86.61) /
2700(106.29) / 3200(125.98) |
| Y axis travel |
mm (in.) |
N/A |
N/A |
±75(2.95) |
| Cutting feed rate |
mm(in.)/rev |
|
| RAPID TRAVEL |
| X axis |
M./min |
10 |
10 |
10 |
| Z axis |
M./min |
6 |
6 |
6 |
| Y axis |
M./min |
N/A |
N/A |
10 |
| Ballscrew diameter |
mm (in.) |
X axis
: 50(1.96) ; Z axis : 63(2.48) ; Y axis : 40(1.57) |
| TAILSTOCK |
| Tailstock travel |
mm (in.) |
600(23.62)
DBC=700(27.55) / 1100(43.3) DBC=1200(47.24) / 1600(62.99)
DBC=1700(66.92)
2100(82.67) DBC=2200(86.61) / 2600(102.36) DBC=2700(106.29) /
3100(122.04) DBC=3200(125.98) |
| Quill diameter |
mm (in.) |
115(4.52) |
| Quill travel |
mm (in.) |
150(5.9) |
| Internal
taper of quill |
MT#6 |
| MOTOR |
| Headstock
oil refrigerator |
|
| Main spindle |
KW(HP) |
22KW
(α22/7000i)-STD |
| Axis servo |
KW(HP) |
X axis
: 4.5KW (α22/3000i)
Z axis : 4.5KW (α22/3000i)
Y axis : 4.5KW (α22/3000i) |
| Hydraulic tank |
KW(HP) |
|
| Coolant pump |
KW(HP) |
|
| Controller |
FANUC
0i-TF series-STD ;
FANUC 31i-B series / Other required-OPT. |
Note :
(1) X and Z axes actual cutting diameter will change when equipped with
different turrets.
(2) Specifications are subject to change without notice for improvement
