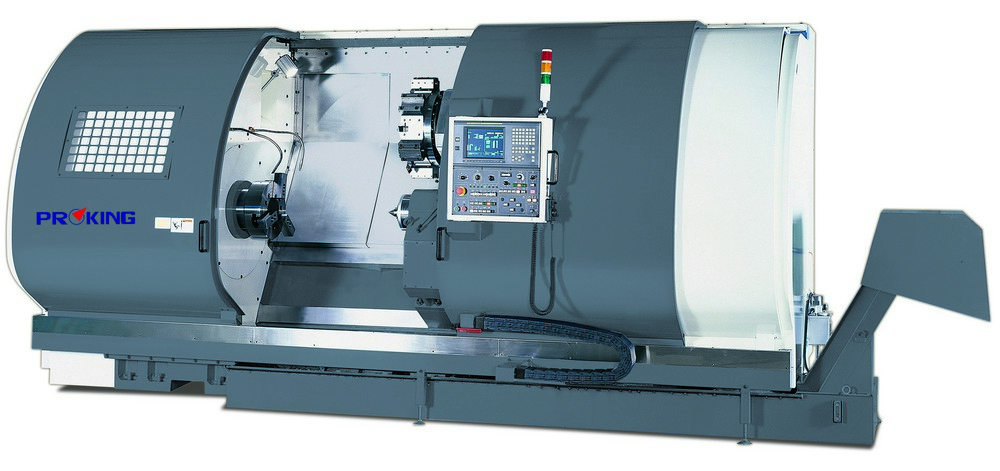

* One piece bed, 45° slant bed construction ensures maximum stability and convenient chip disposal.
* Alloy steel spindle with opposed taper roller bearings.
* All gears in the headstock are hardened and precisely ground.
* Automatic ranges of spindle speed through pneumatic gear shift.
* Spindle speed ranges are automatically changed by M code.
* Infinitely variable speed are commanded by S code.
* Tool change are commanded by T code.
* Auto lubrication system is equipped for headstock, carriage, and cross-slide.
* Precision tapered roller bearings are equipped on the spindle and the quill.
* The quill is heat treated and precisely ground.
* Internal taper of quill to suit MT#5 dead center or live centre.
* Turcite B anti friction material is applied on cross slide and carriage for reduce friction.
* X and Z axis ballscrews are protected by covers to prevent ingress of swarf / chips and coolant.

* V12 turret.
* Rotating tailstock quill with 160mm diameter.
* Motorized tailstock body and quill movement.
* FANUC 0i-TF series complete with manual guide and thread repair.
* Front chip conveyor.

ITEM	UNIT	SS-31	SS-35
CAPACITY
Centre height	mm (in.)	505 (19.88)	555 (21.85)
Swing over bed	mm (in.)	750 (29.52)	850 (33.46)
Swing over cross slide	mm (in.)	670 (26.37)	770 (30.31)
Distance between centres	mm (in.)	700 (27), 1200 (47), 1700 (67), 2200 (86) 3200 (126), 4200 (166), 5200 (206)
BED
Width / Slant angle	mm (in.) / deg	1145 (45.07) / 45°
CARRIAGE
Width of cross slide	mm (in.)	500 (19.68)
TURRET
Standard tool post		Polygon Disc / VDI disc
No. of tool stations		V12 / V8;V12
Turning Tool Size	mm (in.)	32 x 32 (1.25)
Boring Tool Size(max.)	mm (in.)	63 (2.5)
TRAVEL
Cross slide(X axis) travel	mm (in.)	420 (16.53)
Longitudinal(Z axis) travel	mm (in.)	700 (27), 1200 (47), 1700 (67), 2200 (86) 3200 (126), 4200 (166), 5200 (206)
Cutting feed rate	mm(in.)/rev	X axis : 0.001~250(0.00004~9.84) ; Z axis : 0.001~400(0.00004~15.75)
Rapid travel	M.(Ft.)/min	X axis : 6(19.68) ; Z axis : 6(19.68)
Ballscrew diameter	mm (in.)	X axis : 50(1.96) ; Z axis : 80(3.14)
TAILSTOCK
Quill type		Built-in type, Rotating tailstock quill
Quill diameter	mm (in.)	160(6.29)
Quill travel	mm (in.)	200(7.87)
Internal taper of quill		MT#5
MOTOR
Headstock oil refrigerator		18,000BTU(4,500Kcal)
Main spindle	KW(HP)	30/37(40/50)-STD. ; 37.5/45(50/60)-OPT.
Axis servo	KW(HP)	X axis : 7(9.387) ; Z axis : 7(9.387)
Hydraulic tank	KW(HP)	3.7(5)
Coolant pump	KW(HP)	1.05(1.4)
Controller		FANUC 0i-TF series-STD ; FANUC 31i-B series / Other required-OPT.

Note :
(1) X and Z axes actual cutting diameter will change when equipped with different turrets.
(2) Specifications are subject to change without notice for improvement
