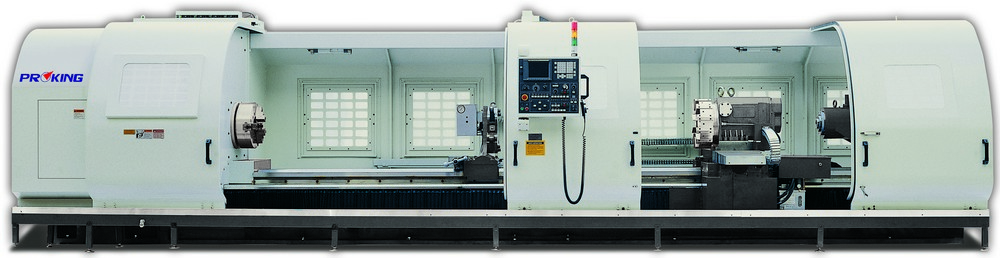

LC SERIES    2 SHEAR BED WAY

*Standard accessories shall be subject to the quotation

BED WIDTH : 560mm (22.04")

LC series LC-35 LC-40 LC-45 LC-50
Swing over bed 880mm 1,010mm 1,135mm 1,275mm
Swing over cross slide 510mm 630mm 760mm 900mm
Distance between centers 1,500mm~12,000mm in 40" increments
Spindle nose A2-11~A2-32
Spindle bore 6"~22"
Spindle motor Standard-30HP ; Option-40HP,50HP
Controller FANUC / FAGOR / SIEMENS
* One piece bed, floor type casting.
* Alloy steel spindle with opposed taper roller bearings.
* All gears in the headstock are hardened and precisely ground.
* Automatic ranges of spindle speed through pneumatic gear shift.
* Spindle speed ranges are automatically changed by M code.
* Infinitely variable speed are commanded by S code.
* Tool change are commanded by T code.
* Auto lubrication system is equipped for headstock, carriage, and cross-slide.
* Precision tapered roller bearings are equipped on the spindle and the quill.
* The quill is heat treated and precisely ground.
* Internal taper of quill to suit MT#6 dead center or live centre.
* Turcite B anti friction material is applied on cross slide and carriage for reduce friction.
* X and Z axis ballscrews are protected by covers to prevent ingress of swarf / chips and coolant.
